Bolt-On Alignment Plates – DXF Download

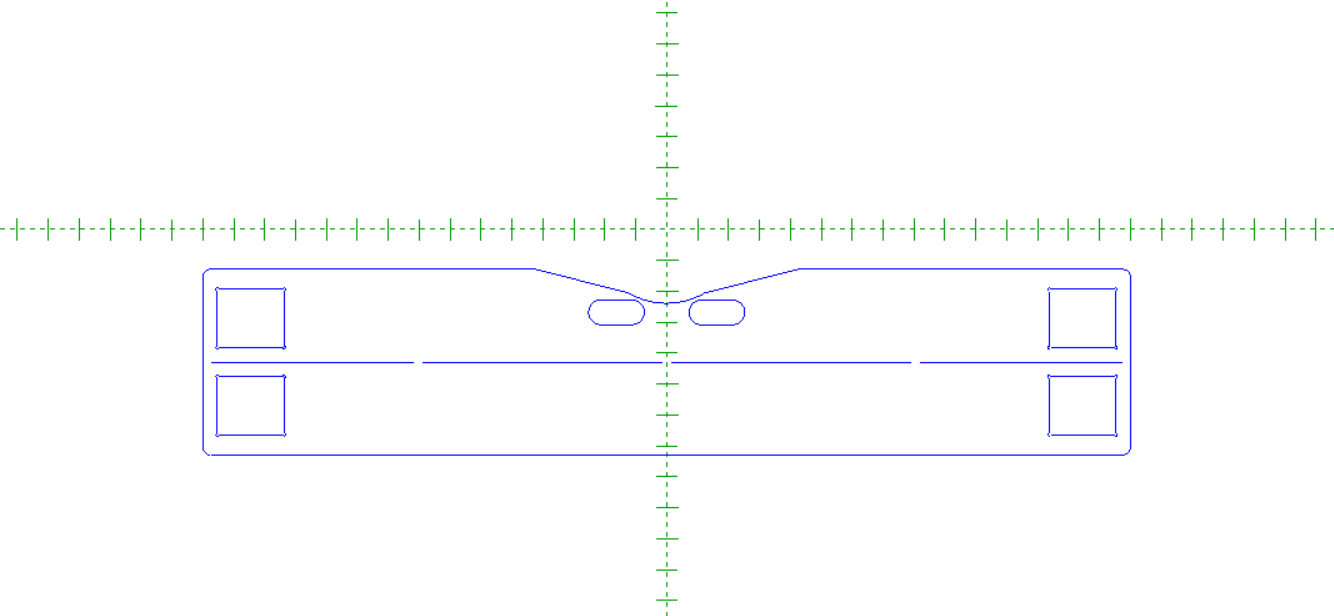

Digital DXF files for CNC cutting your own bolt-on alignment plates. These plates provide a solid, repeatable measuring point so you can set vehicle alignment front-to-back and side-to-side using a standard tape measure.

Perfect for offroad rigs, race cars, crawlers, fabrication shops, and DIY garage setups.

Features:

Instant digital download
DXF format for CNC plasma, laser, or waterjet cutting
Designed for tape measure alignment checks
Helps set toe measurements accurately
Repeatable measuring points
Simple and effective shop tool
Great for DIY fabrication

Supported Bolt Patterns:

4x3.75
4x4
4x4.5
4x100
4x101.6
4x108
4x130
4x137
4x156
5x4.5
5x4.75
5x5
5x5.5
5x100
5x108
5x112
5x114.3
5x120
5x130
5x135
5x150
6x5.5 / 6x139.7
6x114.3
6x135
8x6.5
8x170
8x180
8x200

Important:
Two plates are required to perform alignment measurements. Files included allow you to cut your own set.

Digital Product Only
No physical product will be shipped.
